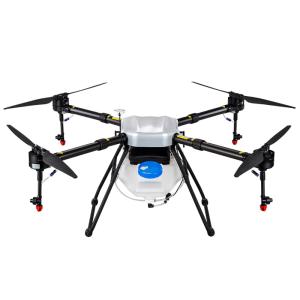

OEM 10 Litre Agriculture Spraying Drone 60 Acres/H 12Minutes Battery 2~3m HXMX410

HXMX410 10L Spraying 60 Acres/H 12Minutes Battery 2~3m Agri Spray Distance Farm Farmland Agriculture Rotary Wing Drone

➦HXMX410 4-rotor agricultural drone features:

(1) Integrated Power wiring.
Centralized power supply, separation of signal and power supply, reducing interference.

(2) Detachable Camera Adapter
A detachable camera adapter ring is designed on the front of the fuselage, which can be installed or closed as needed.

(3) Material of Carbon Fiber
Made of carbon fiber material and aluminum alloy material, light and durable.

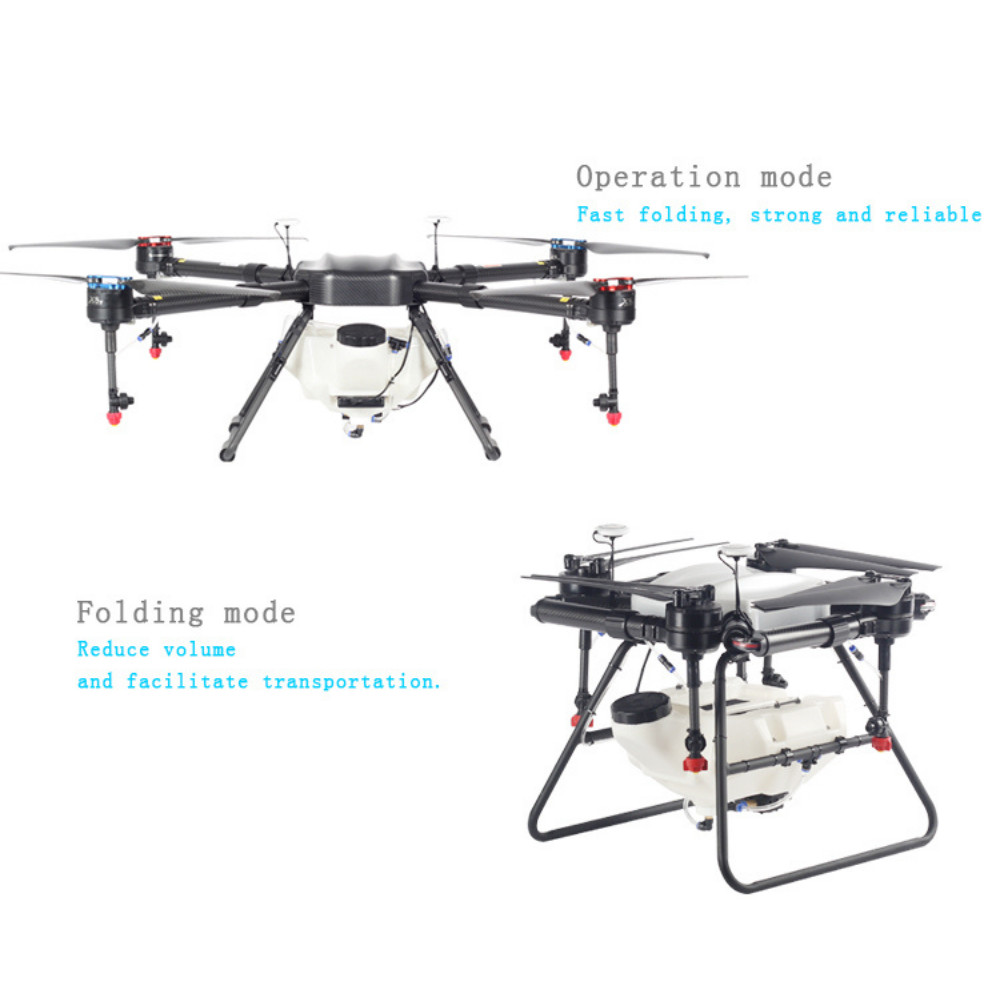

(4) Classic Folding Body
HXMX410 continues the classic foldable body design, which is convenient for transportation and modification.

(5) One-piece Body, Strong and Durable.
The advanced integrated injection molding process is adopted to realize the integrated design of the fuselage, and the strength of the fuselage is higher.

Terrain Radar
During the flight, the millimeter-wave terrain radar under the 4-axis agricultural drone can provide timely feedback on the distance between the drone and the vegetation that needs to be sprayed. Through the manual control system, it can be continuously adjusted to keep the flying height consistent with the plant distance to ensure uniform spraying. Additionally, you can adjust the sensitivity of the terrain radar to suit many other crops and fields.

A-B Point Operation Mode
In the A-B point operation mode, farmers can set A and B points as the apex of the operation area, and manually control the flight direction.
Then the aircraft will spray automatically according to the established route.
When there is no medicine in the medicine box, the 4-axis agricultural drone will hover and record.
After finishing the potion, the 4-axis agricultural drone will fly back to the docking point to continue working.
This model is more suitable for working on regular large areas.

Equipped with App to Provide Visual Work
The HXMX410 Rotary Wing Drone agricultural drone provides customized routes for irregular terrain, and operates exactly as you want to improve operational efficiency. The system has a route memory function and can calculate the spraying area to assist the operator to adjust the dosage more accurately.

Obstacle Avoidance Radar
During the flight of the 4-axis agricultural UAV, the direction and distance of the obstacles in front can be observed through the real-time frontal scanning of the obstacle avoidance radar. When an obstacle enters the warning area, the multi-rotor agricultural drone will automatically stop and record the interrupted coordinate points. Then you can control the drone to go around obstacles by remote control. After that, the UAV can automatically return to the designated route recording point to continue working.

Map Planning Mode
Automatic map planning operation mode, users can operate the operation area through the mobile APP map.
This mode is mainly used in complex fields. Select the multi-point and multilateral planning of the venue to operate, and the route can be automatically created. If there are obstacles in the working area, you can set this area as an avoidance area, and the 4-axis agricultural drone will automatically pass through.

What is the delivery standard of our products when they leave the factory?

▶We test the flight performance of each Rotary Wing Drone.
▶We test the functional status of accessories for each drone.
▶After passing the test, we will actively confirm with the customer through video calls & video recordings.
▶ We provide 24 hours online technical support.
▶From the time of delivery to the time of receipt, we track the international logistics information and report it in time.
